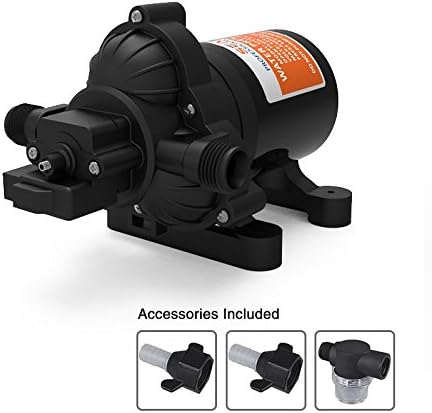

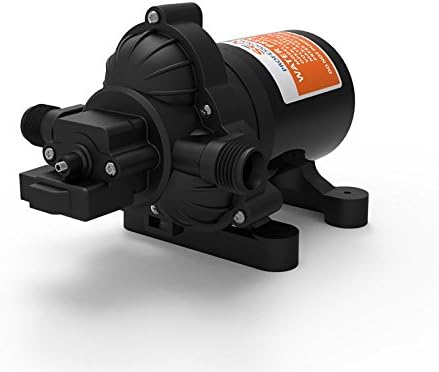

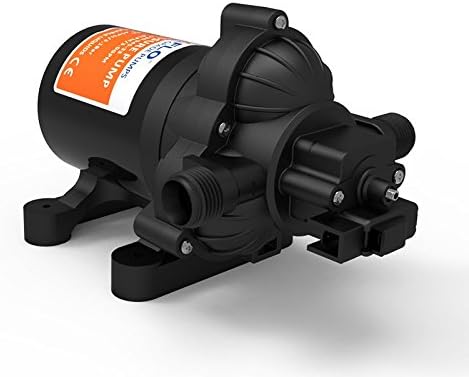

24V DC 2.8 GPM 45PSI Diaphragm Water Pressure Pump C1523
24V DC 2.8 GPM 45PSI Diaphragm Water Pressure Pump C1523
On-demand, automatic water pump for small boats, campers and vans
Built-in 45 PSI(3.1 BAR) pressure switch for automatic stop/start
Self-priming allows it to be mounted above tank; able to run dry
Built-in thermal protector; 1/2'-14 MNPT Ports; 2-Pin/Leads Wire Connections
2.8 gallons per minute (10.6 liters per minute); 3.5 Max Amps
Features & Benefits
Positive displacement pump
Can run dry
Quiet operation
Demand pump
Low amp draw
Industry standard mount pattern
Built in check valve
Thermally protected
Easy connect fitting
Typical Applications
Agricultural Spraying
General Industrial
Automotive
Marine/RV
PUMP
Type��Heavy 3 chamber positive displacement diaphragm
pump, self priming, capable of being run dry
Mode: demand
Liquid Temperature��140��F (60��C) Max.
Priming Capabilities��6 feet (1.8 m) suction lift
Max Pressure ��45 PSI (3.1 bar)
Inlet/Outlet Ports��1/2'-14 MNPT
Weight��2.5 lbs (1.14 kg)
MOTOR
Duty Cycle��Intermittent
Leads��16 AWG, 4.5' long with 2-Pin connector/Leads
Voltage��24V
